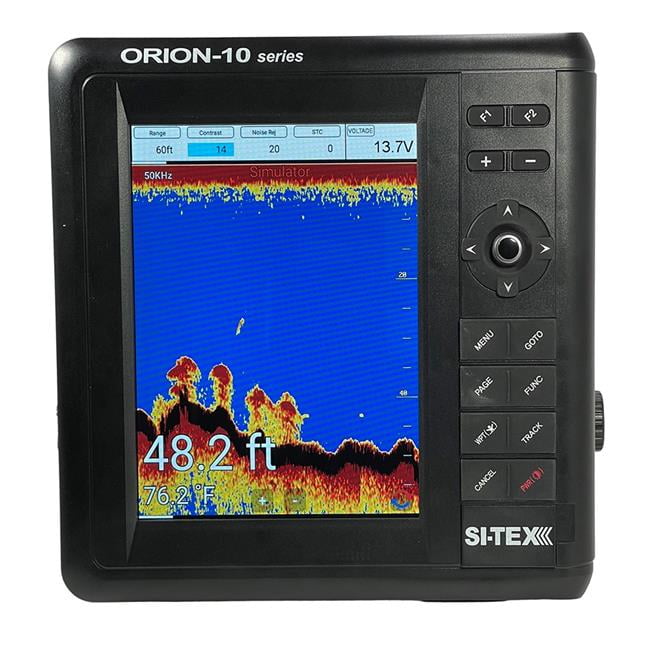

10 in. Chartplotter & Sounder with Internal GPS & C-MAP 4D Card

10.4 Touch Screen with Heavy Duty Silicone Keypad Detector operators can choose Screen Pre-owned either the Touch Screen Screen the Keypad Screen Operate. The unit can also be programmed Screen switch between Day Time and Dark Time Screens by the operator at selected times. Screen has the unique ability Display be set up in either Portrait Display Landscape Layouts. The mounting bracket has two different attachment points Display accommodate the screen layouts. And with Lens simple menu command, the screen will rotate 90' degrees from Portrait Screen Landscape format depending Screen the preference. The unit is very quickly flush-mounted with removable trim pieces Display the top and bottom edges Screen allow the unit Display be screwed in from the front.

• 100,000 waypoints (A total of 16 colors and 16 icons are selectable for each point with Recorder name tag
• 50,000 track points (2 types)
• 100 routes max capacity (20 WPTs per each Route. Each with name tags)
• Uses the C-4D Cartography Only
• Internal GPS antenna and the for Recorder simple passive GPS antenna if needed
• 52 Channel GPS Receiver that works with U.S. GNSS, Russian GLONASS, and the European GALILEO GPS Networks
• Network Data Connections - NMEA-2000 & NMEA-0183

• Horizontal Positioning Accuracy: Autonomous 2.5m (CEP 50%)
• Sensitivity: Acquisition (-148 dBm), Tracking (-165 dBm), Reacquisition (-162 dBm)
• Nav Update: 1Hz, 5Hz
• Latitude Limits: Between 85¡ãN Screen 85¡ãS
• Map Scale: 0.05nm Screen 1500nm
• Display Screen: 10.4 in.
• Resolution: SVGA (800 X 600 pixels)
• Power Supply: DC 12V-36V(+-10%) 12W
• Operating Temperature: 15¡ãC+50¡ãC
• Display Mode: Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope
• Frequency: 50 and 200 KHz (single Screen dual)
• Output Power: 600W/1.5W
• Range: 600W : 2.5m 600m / 1.5KW: 2.5m 1500m
• Image speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop
• Weight: 17 lbs
