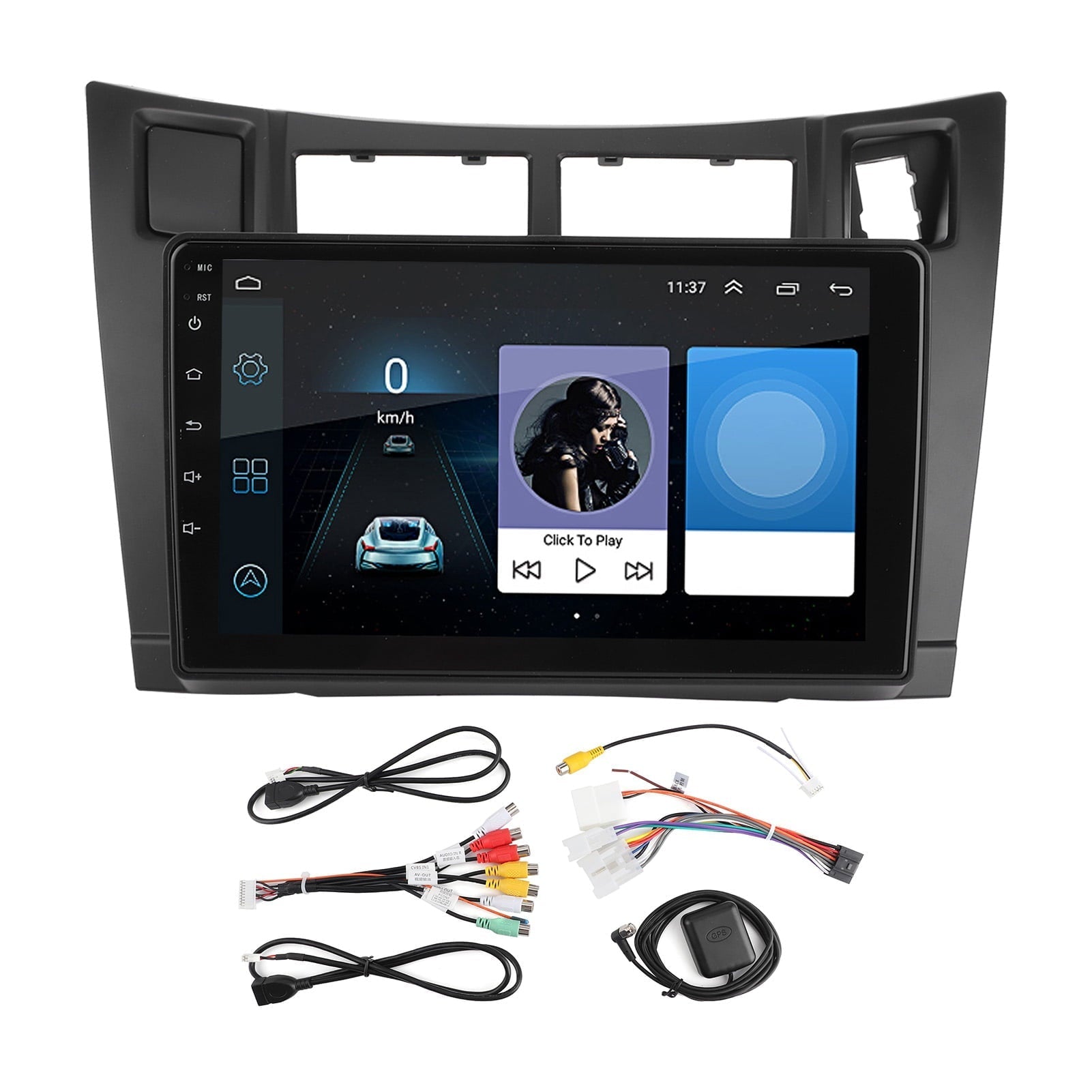

9in Automobile GPS Navigator Bluetooth 4.0 Touch Screen for Android 10.0 Fit for Yaris 20082011(2+32G )
$40.59
Skip to product information
Item Type: Automobile GPS Navigator
Material: ABS+Metal
Working Voltage: DC 9-17V
Operating System: For Android 10.0
Screen Size: Approx. 9 inches
Screen Resolution: 1024 x 600
Configuration: GPS/BT/USB
Decoding Chip: UIS8141E
Power Amplifier Chip: TDA7388
Mobile Phone Interconnection: For Android two-way / for IOS one-way
GPS Navigation: Support
Radio Band: FM
Radio Chip: 8227
Audio Frequency: FM87.5-108m
Reversing Image: Support
Brake Reminder Function: Yes
Steering Wheel Control Function: Yes
Bluetooth: Support, version 4.0, support Bluetooth music, Bluetooth phone
Output Terminal: 1 way reversing input, 1 way video input, 2 way audio output
USB Interface: Version 2.0, with 2 channels, 1 channel in front
Play Mode: USB/Bluetooth 4.0 (password: 0000)
Supported Image Formats: JPEG, GIF, PNG, BMP
Supported Audio Formats: MP3, FLAC, APE, WMA, WAV, AAC, AMR, etc.
Supported Video Formats: AVI, ASF, MP4, MOV, MPG, MPEG 1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP, 1080P, etc.
Fitment: Fit for Yaris 2008?2011
How Display Use:
1. Loosen the bolts of the center control panel.
2. Remove the trim of the center control panel.
3. Remove the original car's central control panel and disassemble the original car's multimedia host.
4. Organize the GPS antenna of the new navigation host.
5. Check the signal line plug and power cord plug connected Screen the host.
6. Connect the signal line plug, ACC power plug and GPS antenna of the new navigation host.
7. Power Screen the vehicle and check whether the new navigation host is working properly.
8. Start the navigation and drive Recorder circle around, check whether the navigation coordinates are offset and whether the GPS positioning is connected.
9. After the road test is completed, please restore the vehicle when there is no problem.
9in Automobile GPS Navigator Bluetooth 4.0 Touch Screen for Android 10.0 Fit for Yaris 20082011(2+32G )
$40.59
Material: ABS+Metal
Working Voltage: DC 9-17V
Operating System: For Android 10.0
Screen Size: Approx. 9 inches
Screen Resolution: 1024 x 600
Configuration: GPS/BT/USB
Decoding Chip: UIS8141E
Power Amplifier Chip: TDA7388
Mobile Phone Interconnection: For Android two-way / for IOS one-way
GPS Navigation: Support
Radio Band: FM
Radio Chip: 8227
Audio Frequency: FM87.5-108m
Reversing Image: Support
Brake Reminder Function: Yes
Steering Wheel Control Function: Yes
Bluetooth: Support, version 4.0, support Bluetooth music, Bluetooth phone
Output Terminal: 1 way reversing input, 1 way video input, 2 way audio output
USB Interface: Version 2.0, with 2 channels, 1 channel in front
Play Mode: USB/Bluetooth 4.0 (password: 0000)
Supported Image Formats: JPEG, GIF, PNG, BMP
Supported Audio Formats: MP3, FLAC, APE, WMA, WAV, AAC, AMR, etc.
Supported Video Formats: AVI, ASF, MP4, MOV, MPG, MPEG 1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP, 1080P, etc.
Fitment: Fit for Yaris 2008?2011
How Display Use:
1. Loosen the bolts of the center control panel.
2. Remove the trim of the center control panel.
3. Remove the original car's central control panel and disassemble the original car's multimedia host.
4. Organize the GPS antenna of the new navigation host.
5. Check the signal line plug and power cord plug connected Screen the host.
6. Connect the signal line plug, ACC power plug and GPS antenna of the new navigation host.
7. Power Screen the vehicle and check whether the new navigation host is working properly.
8. Start the navigation and drive Recorder circle around, check whether the navigation coordinates are offset and whether the GPS positioning is connected.
9. After the road test is completed, please restore the vehicle when there is no problem.
1 x Vehicle Navigation System?(Back appearance random)
2 x USB Cable
1 x GPS Cable
1 x Power Cord
1 x Audio Cable
1 x Reversing Line
1 x Manual?
1 x Wiring Diagram
